Q: Find the effective length of an isolated cantilever RCC beam as per IS 456-2000, where the length from the free end to the face of support is 1 m, the effective depth of the beam, is 400 mm and the width of support is 300 mm.
  • A. 1.15 m
  • B. 1.3 m
  • C. 1.2 m
  • D. 1.4 m
Correct Answer: Option C -

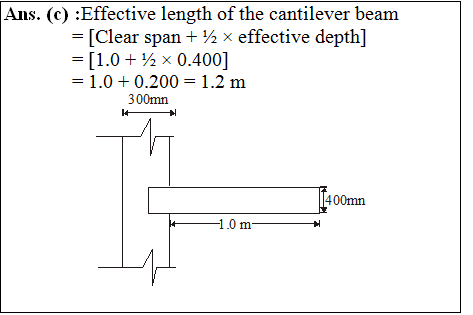

answer image

Explanations:

explanation image
