Q: A transistor is connected in common emitter configuration. Collector voltage is 8 volt and the voltage drop across the resistance of 800 ohm connected in collector circuit is 0.5 volt. If current gain (𝛂 ) = 0.96 then base current will be एक ट्रांजिस्टर उभयनिष्ठ उत्सर्जक विन्यास में जोड़ा गया है। संग्राहक-विभव 8 वोल्ट है तथा संग्राहक परिपथ में लगे 800 ओम प्रतिरोध में विभव पतन 0.5 वोल्ट है। यदि धारा-लब्धि (𝛂 ) = 0.96 हो, तो आधार धारा होगी
  • A. 22 µA
  • B. 52 µA
  • C. 26 µA
  • D. 26 mA
Correct Answer: Option C -

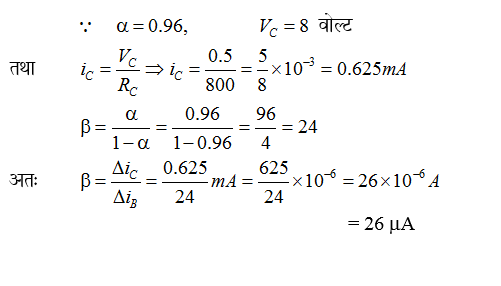

answer image

Explanations:

explanation image
