A T-section is designated by ISNT 150 @ 223.7 N/m. What are the meanings of 150 and 223.7?

• A. It is 150 mm deep and the self-weight is 223.7 kg per metre length.
• B. It is 150 mm thick and the self-weight is 223.7 N per metre length.
• C. It is 150 mm deep and the self-weight is 223.7 N per metre length.
• D. It is 150 mm thick and the self-weight is 223.7 kg per metre length.

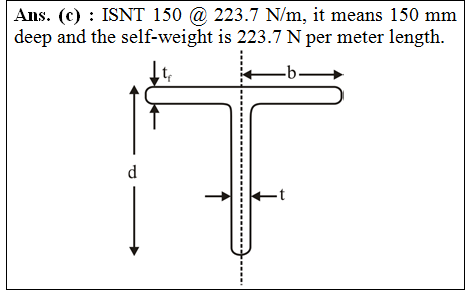

Answer 1

Answer: (C)
