Q: Which of the following statements is correct with respect to under reinforced section?
  • A. The actual neutral axis will be above the critical neutral axis of the balanced section
  • B. The actual neutral axis will coincide with the critical neutral axis of the balanced section
  • C. The moment of resistance obtained from the compressive force will be equal to the moment of resistance obtained from the tensile force.
  • D. The actual neutral axis will fall below the critical neutral axis of the balanced section.

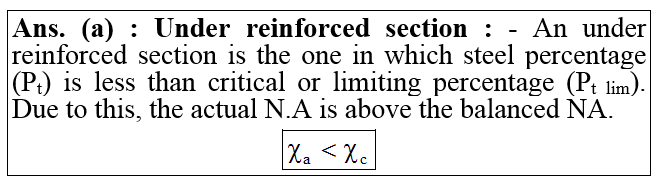

Correct Answer: Option A -
answer image

Explanations:

explanation image
