Q: Maximum size of fillet weld for a plate of square edge is
  • A. 1.5 mm less than the thickness of the plate
  • B. one half of the thickness of the plate
  • C. thickness of the plate itself
  • D. 1.5 mm more than the thickness of the plate
Correct Answer: Option A -

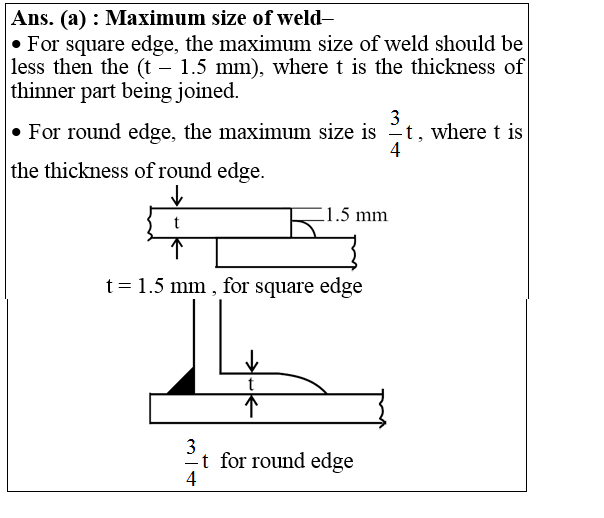

answer image

Explanations:

explanation image
