Q: In stress block diagram for A rectangular section of singly reinforced beam IN LIMIT STATE METHOD, the centroid of compressive force lies at a distance of _______ from the extreme compression fibre.
  • A. 0.5 Xu
  • B. 0.36 Xu
  • C. 0.45 Xu
  • D. 0.42 Xu
Correct Answer: Option D -

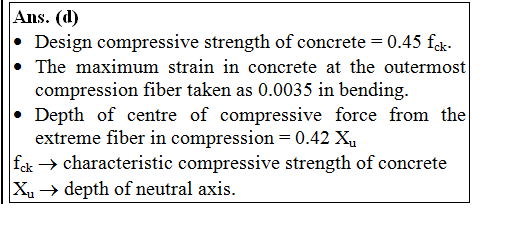

answer image

Explanations:

explanation image
