Q: If a point load acting at the mid-span of a fixed beam of uniform section produces fixed end moments of 60 kNm, then the same load spread uniformly over the entire span will produce fixed end moments equal to
  • A. 20 kNm
  • B. 30 kNm
  • C. 40 kNm
  • D. 45 kNm
Correct Answer: Option C -

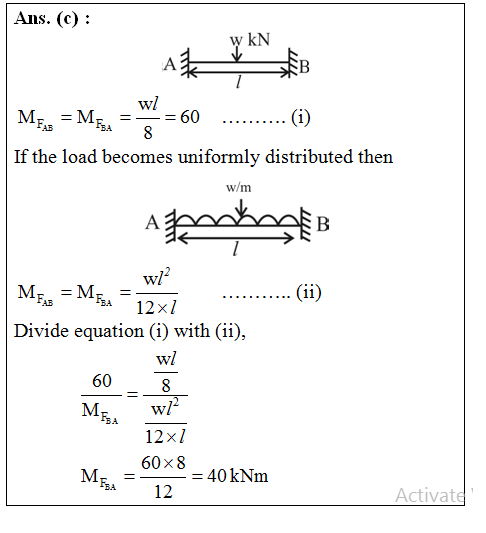

answer image

Explanations:

explanation image
