Q: Determine the shear force F and moment M at section 5 m from the fixed end of cantilever beam having length 7 m carrying a point load 36 kN (3 m from the fixed end) along with udl of 4 kN/m throughout the length of 7 m.
  • A. F = 8 kN, M = –8 kN-m
  • B. F = 10 kN, M = –10 kN-m
  • C. F = 10 kN, M = 8 kN-m
  • D. F = 8 kN, M = 10 kN-m
Correct Answer: Option A -

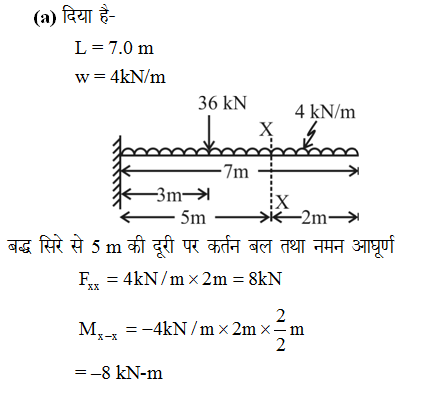

answer image

Explanations:

explanation image
