Q: A three-hinged parabolic arch has a span of 30 m and the central rise is 5 m. It is subjected to a point load of 40 kN at a distance of 20 m from the right hinge. Calculate the vertical reaction component at its left support.
  • A. 13.13 kN
  • B. 40 kN
  • C. 26.67 kN
  • D. 35.35 kN

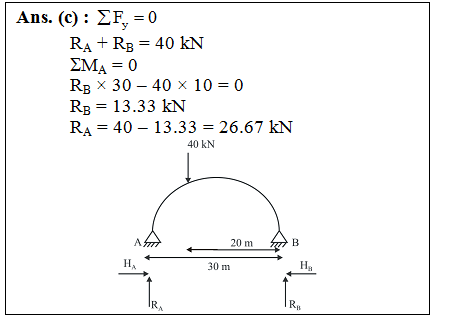

Correct Answer: Option C -
answer image

Explanations:

explanation image
