Q: A cantilever beam of size 230 × 400 mm has a clear span of 2.5 m and is supported on a 400 × 400 mm column. The effective span of the cantilever is- 230 × 400 मिमी आकार वाली एक कैंटिलीवर बीम का क्लियर स्पैन 2.5 मीटर है और यह 400 × 400 मिमी के स्तंभ द्वारा समर्थित है। कैंटिलीवर का प्रभावी स्पैन क्या होगा–
  • A. 2.7 m
  • B. 2.9 m
  • C. 2.615 m
  • D. 3.3 m
Correct Answer: Option A -

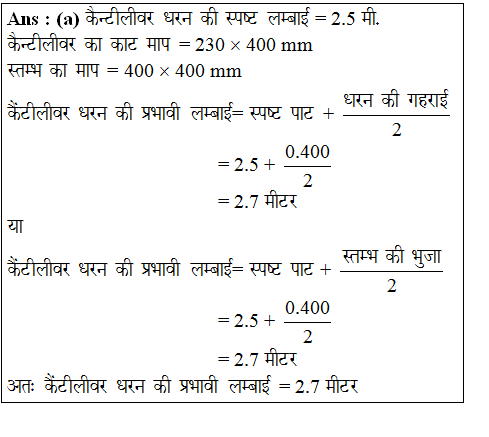

answer image

Explanations:

explanation image
